Precision engineered, built in-house, shipped worldwide
Every component laser-cut, bent and welded on our floor in Dongguan, and finished under the same inspection.
Selected Works
ATM Internal Support Plate
Heavy-duty internal support plate for ATM and banking terminal enclosures. Cable routing tabs and standoff mounting points distribute load across multiple mounting positions.

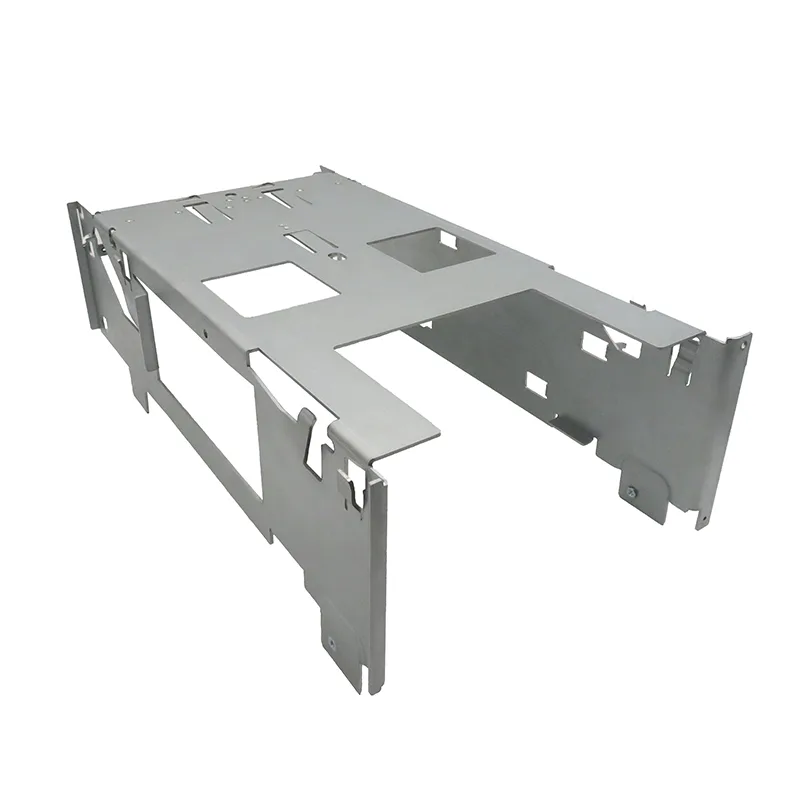

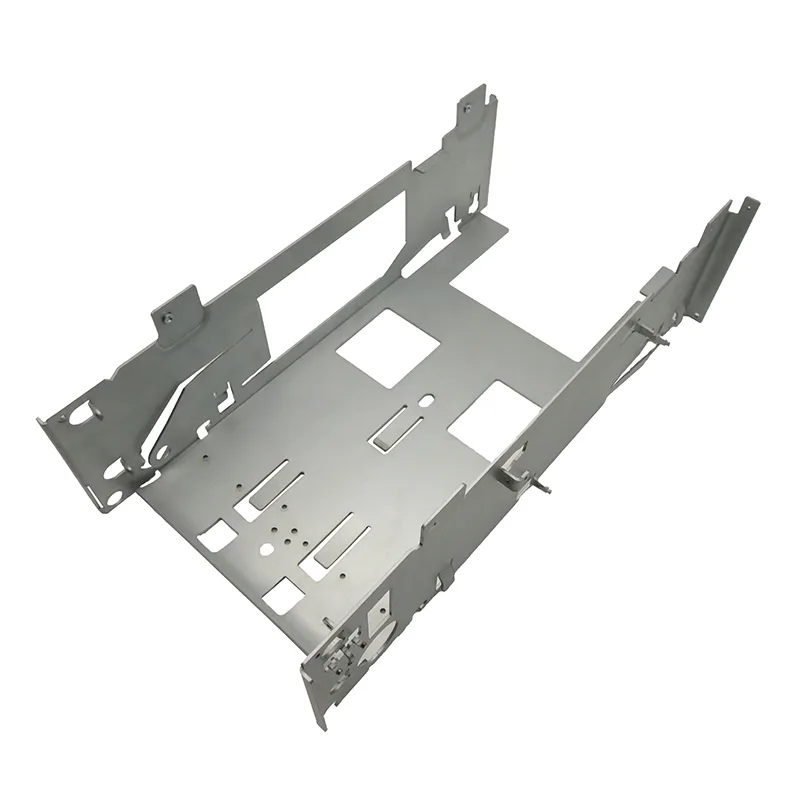

Banking Kiosk Enclosure Panel
Complex internal enclosure panel for banking kiosk and terminal assemblies. Multiple cutouts for component access, cable management, and expansion slots.

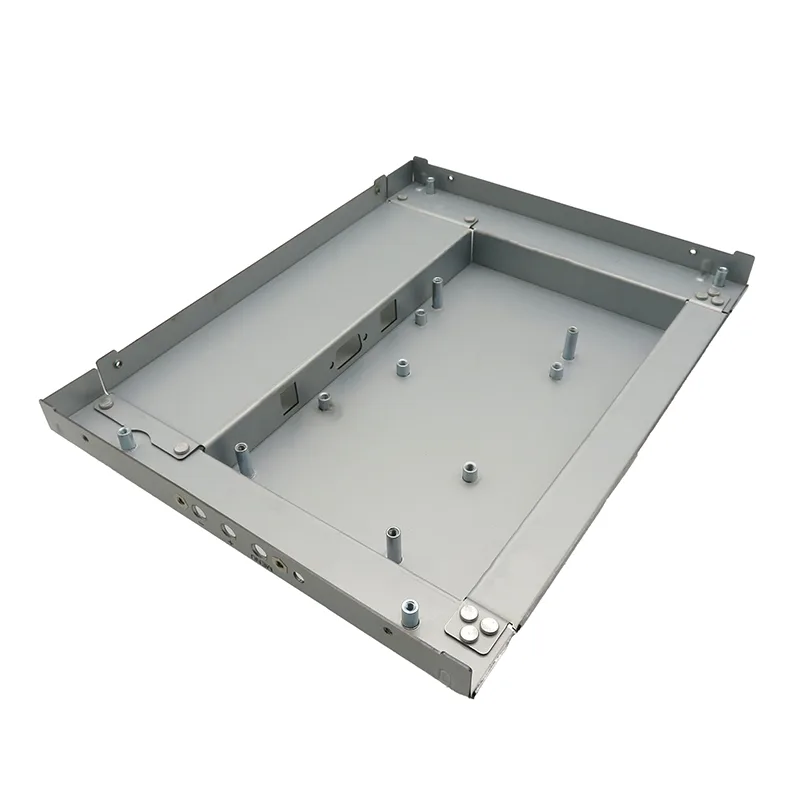

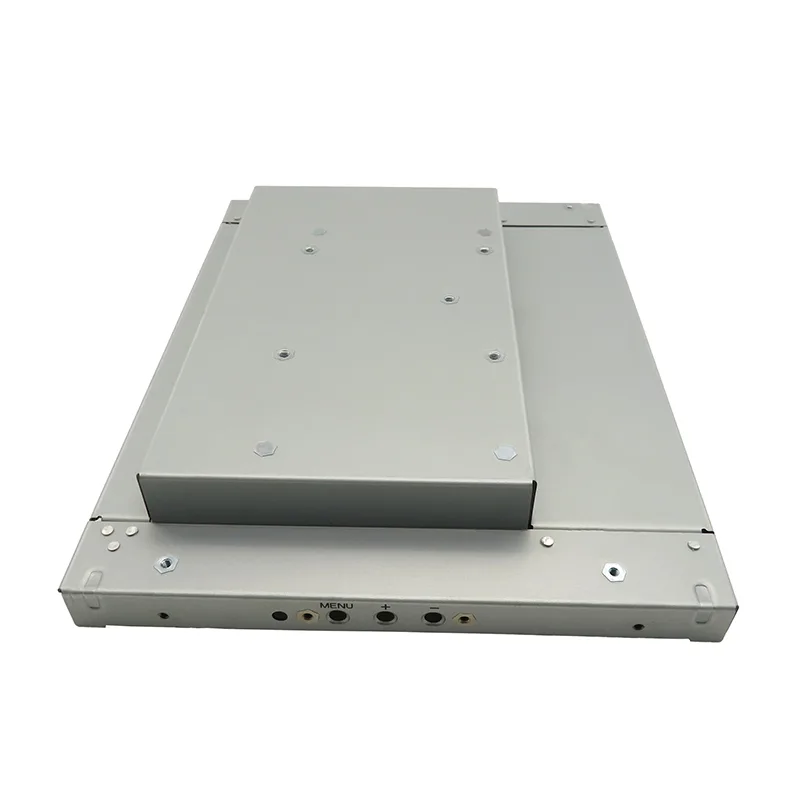

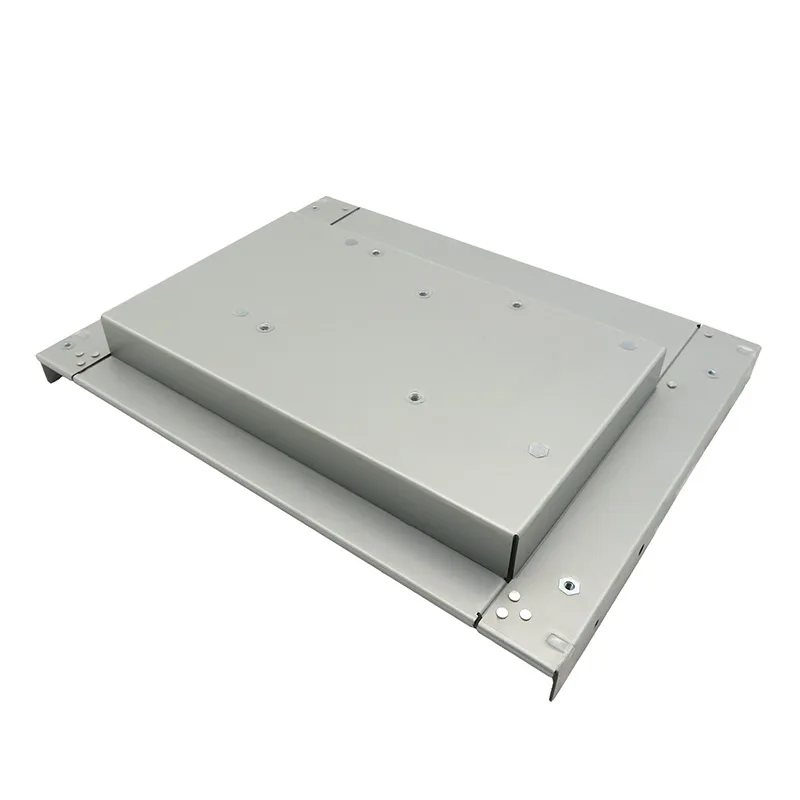

Banking Terminal Display Panel
Flat display back panel for banking terminal with front-facing control button cutouts labeled MENU, +, -. Precision-machined button holes.
ATM Enclosure & Cash Machine Housing — Tamper Resistant
ATM surround and cash machine housing built for public 24/7 use: 2–3 mm steel, reinforced door frames, anti-pry flanges around the note dispenser, concealed hinge pins and a bolted floor frame so the machine cannot be walked out of the lobby.
Self-Service Kiosk Cabinet — Indoor & Outdoor
Kiosk cabinet for ticketing, wayfinding and self-checkout terminals: welded frame, screen and card-reader cutouts held to ±0.5 mm, lockable service door, cable management inside the plinth, and an IP54 or IP65 variant when the unit stands outdoors.
POS Terminal Housing — Retail Payment Enclosure
Point-of-sale terminal housing for countertop and handheld payment devices: 0.8–1.5 mm steel or aluminium shell, keypad and printer apertures with a defined cosmetic grade, non-slip base, and a thermal path that keeps the contactless reader within its operating range.
All Banking & Financial sheet metal parts
- ATM Internal Support Plate
- Banking Kiosk Enclosure Panel
- Banking Terminal Display Panel
- ATM Enclosure & Cash Machine Housing — Tamper Resistant
- Self-Service Kiosk Cabinet — Indoor & Outdoor
- POS Terminal Housing — Retail Payment Enclosure
- Vending Machine Enclosure — Snack & Drink Cabinets
- Cash Recycler & Coin Dispenser Housing
- Queue Management Terminal Housing — Display & Ticket
- Smart Locker & Parcel Locker Cabinet
- Hospital Self-Service Terminal
- Gas Station/Charging Kiosk Housing
Specifications we produce
- Material
- SGCC galvanized steel 3.0mm · SECC steel 0.8mm · AL5052-H32 aluminum 1.5mm · SPCC 2.0-3.0mm / SUS304 1.5mm · SPCC 1.5mm / AL5052 1.5mm · AL6061-T6 1.5mm / ABS · SPCC 1.5-2.0mm / SECC 1.2mm · SPCC 1.5mm / SUS304 1.2mm · SPCC 1.5mm / AL5052 1.2mm · SPCC 1.2-1.5mm / SECC 1.0mm · SUS304 1.5mm / SPCC 2.0mm
- Tolerance
- ±0.1mm
- Manufacturing processes
- Laser Cutting · CNC Bending · Powder Coating · Precision Laser Cutting · Anodizing · laser cutting · CNC bending · MIG welding · powder coating · CNC machining · anodizing · spot welding · precision laser · bending · PEM insertion · TIG welding
- Surface Finish
- Hot-dip galvanized · Zinc plated · Anodizing Type II, silver · powder coat + anti-tamper features · powder coat + silk screen printing · anodizing Type II + laser engraving · powder coat + vinyl wrap · powder coat + anti-fingerprint coating · powder coat + silk screen · powder coat + digital lock cutouts · antibacterial powder coat · brushed stainless or outdoor powder coat
Banking and kiosk hardware: security, abuse resistance, uptime
ATMs, kiosks, payment terminals and smart lockers are public-facing machines that must resist tampering, survive daily handling and stay in service. The sheet metal in them is structural, protective and cosmetic at the same time, and much of it is hidden behind bezels and locks where nobody sees the quality — until it fails.
Because these machines are deployed in fleets, the parts are ordered in waves and expected to match the original fleet exactly, sometimes years later. Documentation and batch traceability are therefore part of the product, not an add-on.
- Typical banking hardware we manufacture
- ATM internal frames, support plates and covers
- Kiosk enclosures and bezels
- POS terminal housings and mounting plates
- Smart locker doors and frames
- Reinforcement plates and lock housings
- Tamper resistance is a fastener and a geometry decision
- Security fixings only work if the surrounding panel cannot be prised. Flanges, returns and recessed fastener pockets do more for tamper resistance than thicker steel, and they keep the weight within what the floor loading or wall fixing allows.
- Public-use surfaces take real abuse
- Doors, keypad surrounds and card-reader bezels need a heavier coating build and edges that do not chip. We agree which surfaces are "public" at drawing stage, because the finish standard and the inspection level both follow from it.
- Service access without compromising security
- A technician needs fast access; the machine needs to resist a stranger. Hinge and lock placement is therefore a manufacturing-relevant decision, and we build to the customer’s lock and hinge hardware standard.
- Material and finish choices for banking hardware
- SGCC and SPCC 1.2–3.0 mm for structure, with heavier gauge or stiffening on doors and frames; 304 stainless where the machine is exposed to the public or to cleaning chemicals. Powder coat with a wear-resistant requirement on public surfaces, brushed stainless on premium visible faces, and conductive finishes where payment hardware specifies earthing.
- Quality records banking buyers ask for
- Dimensional reports, coating thickness on public surfaces, material certificates for structural plates, and full batch traceability so a fleet-wide spare matches the installed base. Because these machines handle payments, we also see customer-specific earthing and continuity expectations pushed into the sheet metal specification.
What we make, not just who for
Enclosures, cabinets, chassis, brackets, panels and frames — with the design constraints each one comes with.
